Description
Separate amplifier required.
Product info:

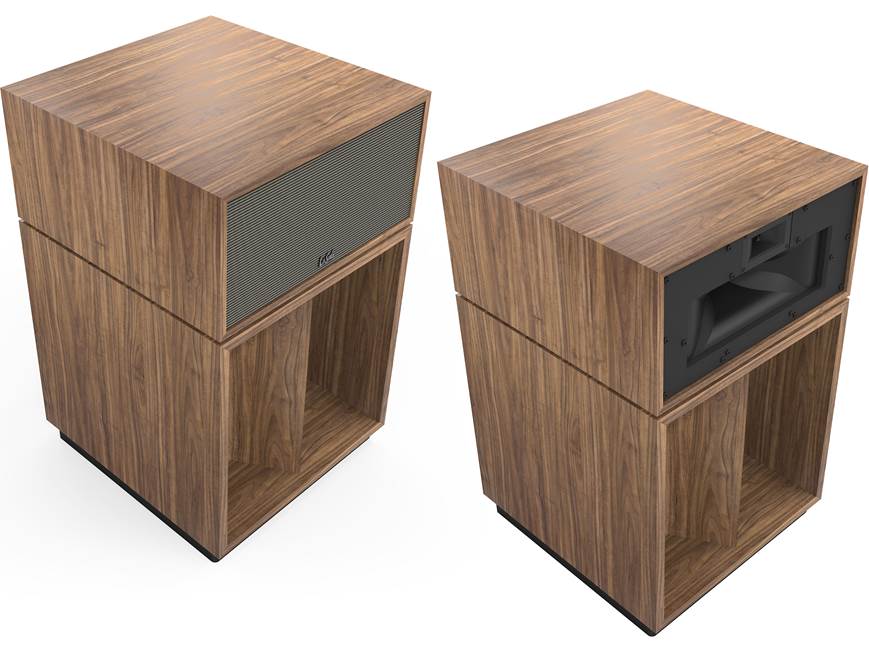

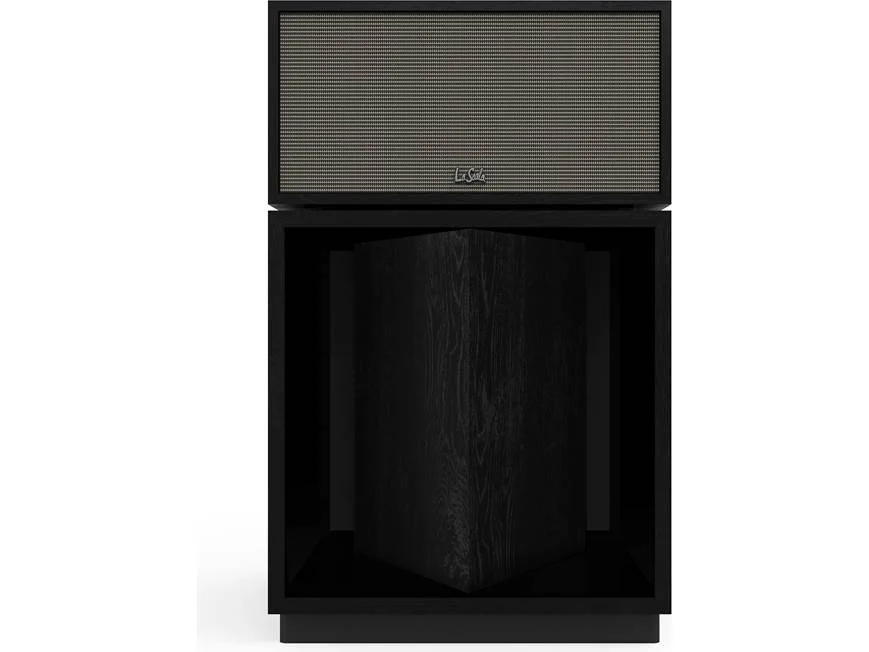

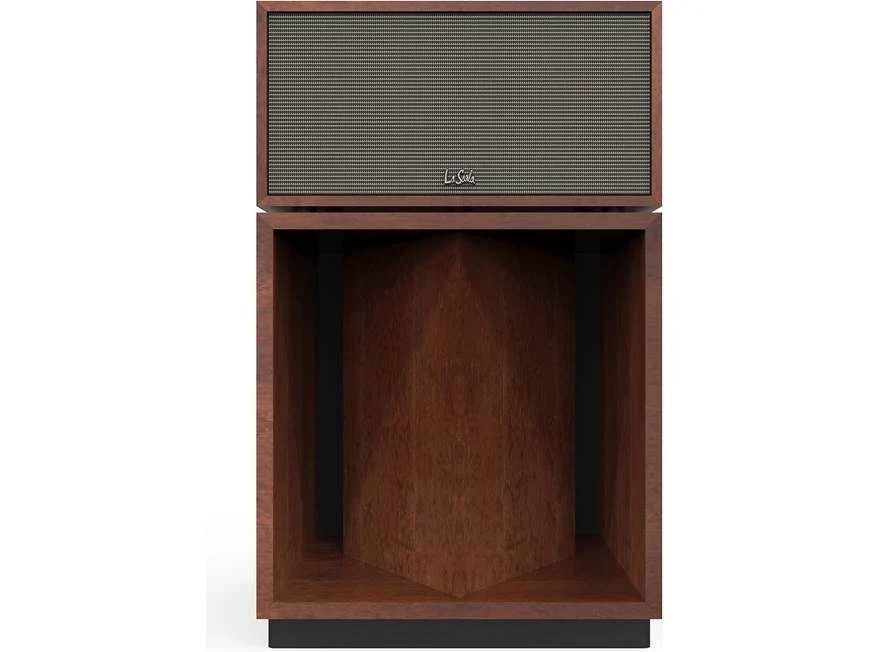

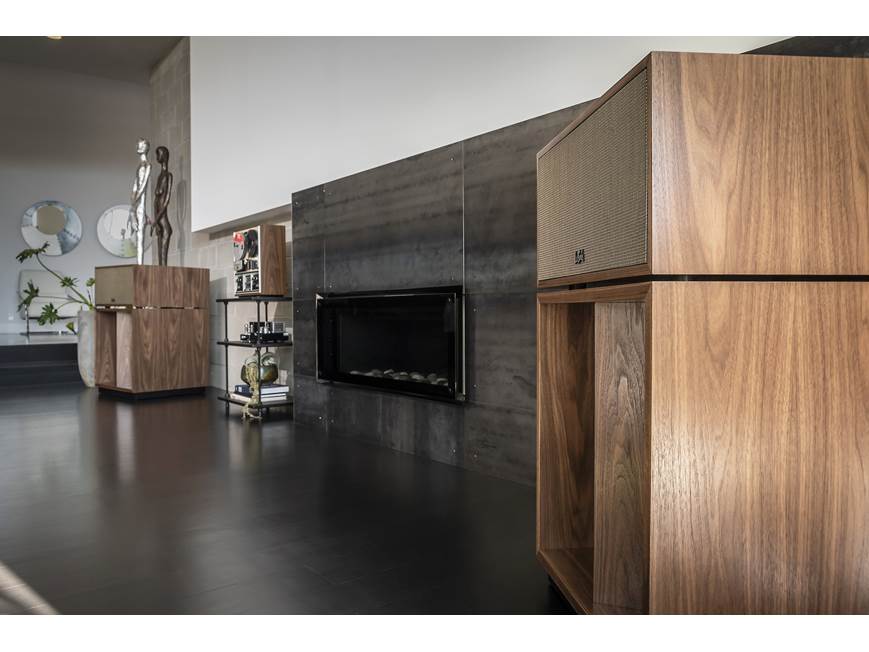

- matched pair of floor-standing speakers
- handmade in Hope, Arkansas

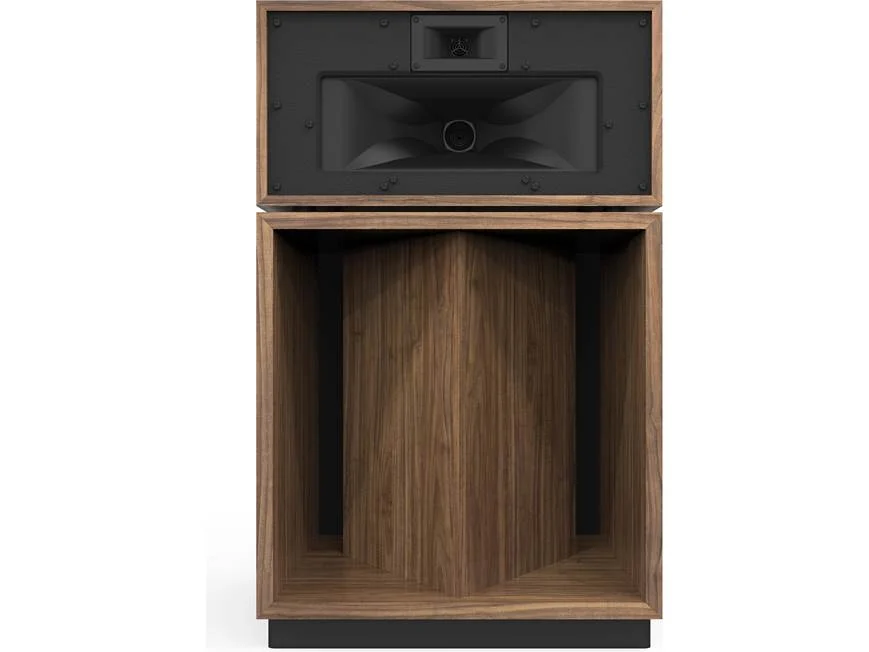

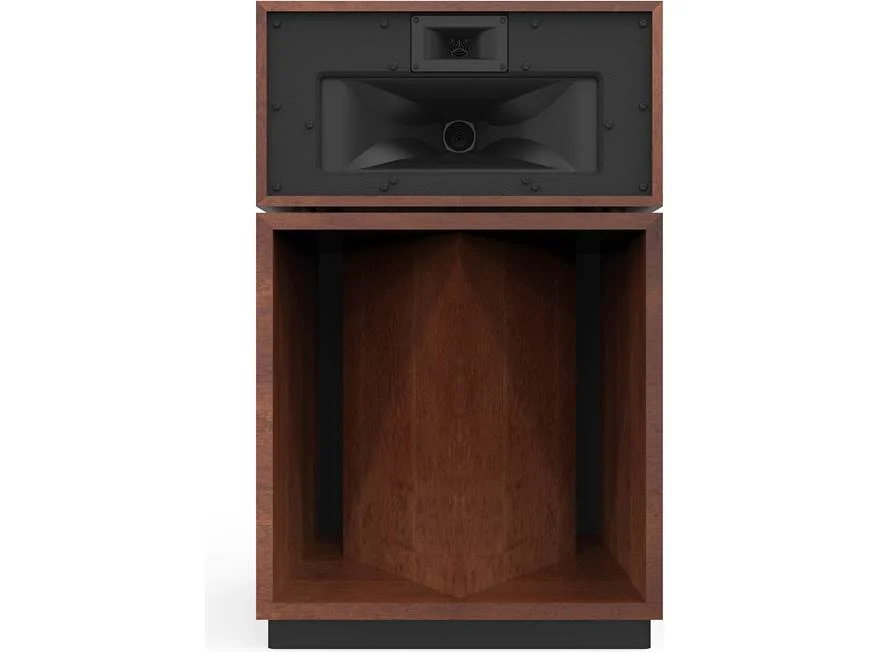

- three-way design with new, custom horn-loaded enclosures

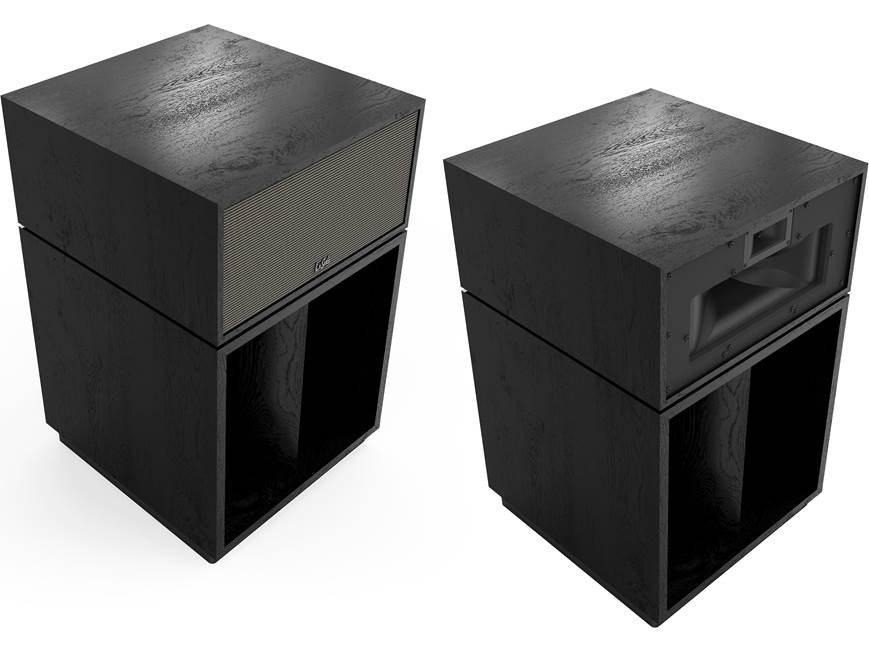

- separate upper and lower cabinets
- 1″ K-771 compression driver tweeter with custom-engineered phase plug
- 3″ K-1133-HP compression driver midrange coupled to K-406 horn
- 12″ K-281 woofer coupled to custom folded horn

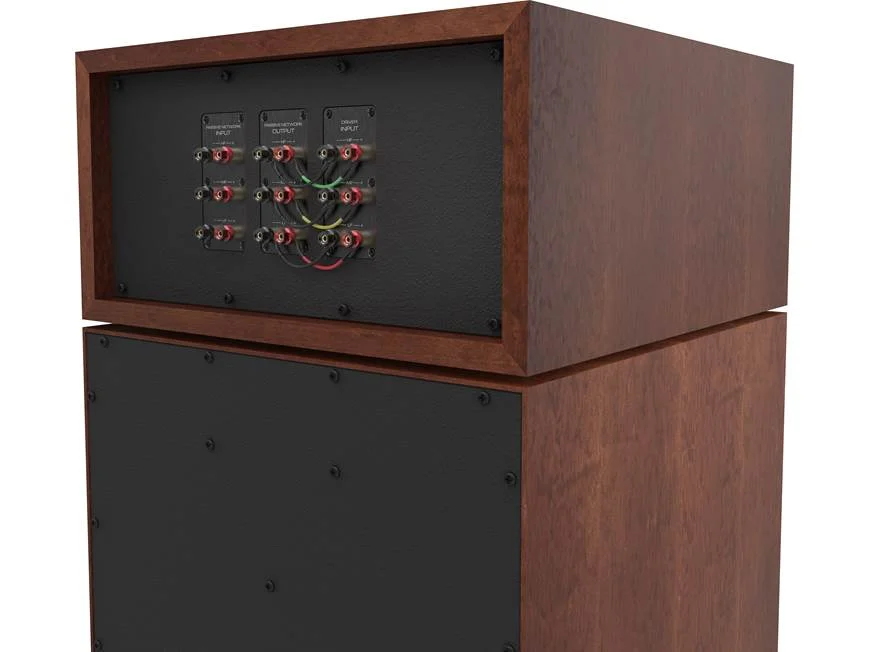

- three sets of binding posts accommodate single-amp or tri-amp setups
- included jumpers simplify wiring with single-amp setups
- separate active inputs for matching outboard Klipsch Heritage Active Crossover (sold separately)
- Note: When using Heritage Active Crossover, three separate amplifiers are required

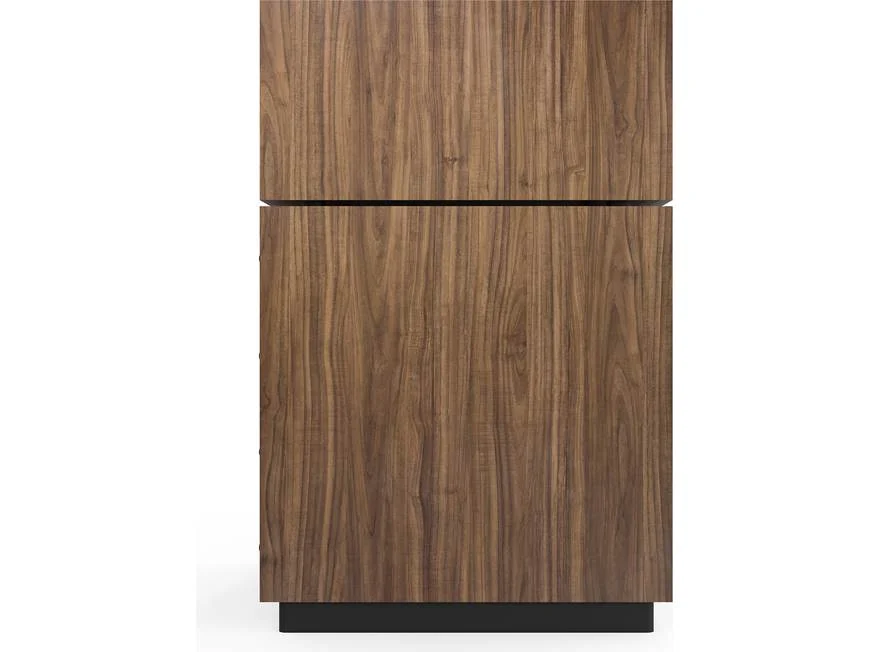

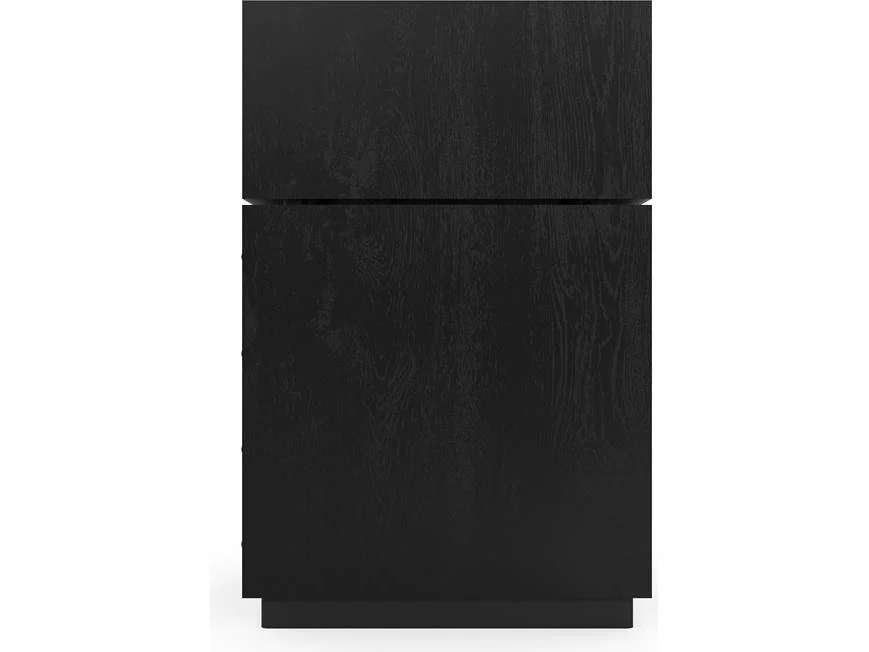

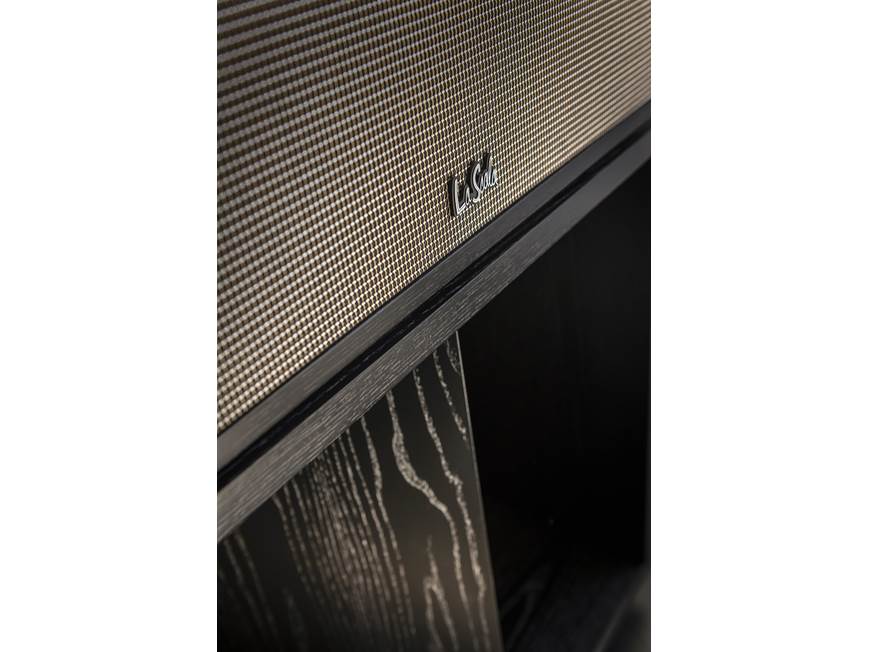

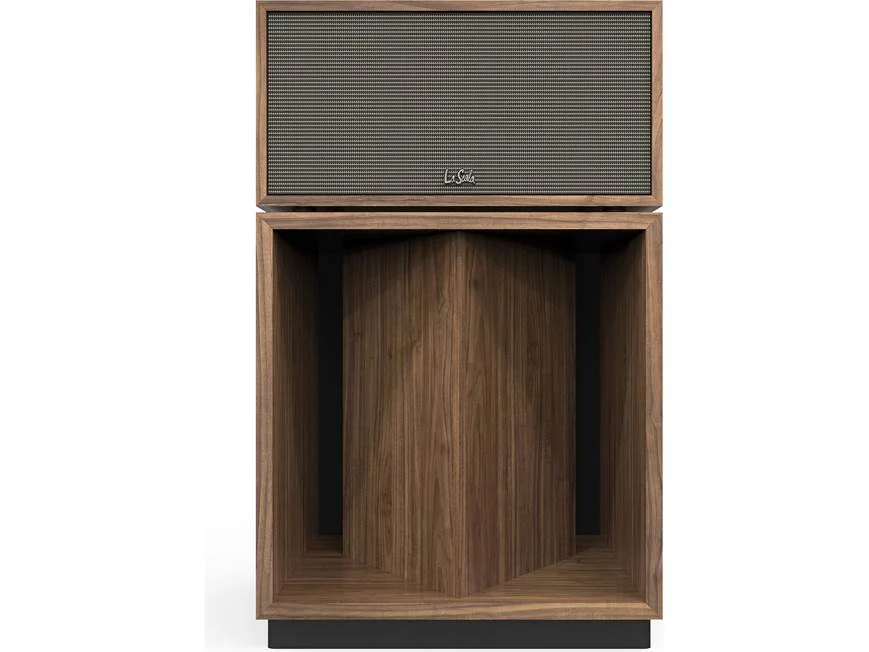

- book-matched real wood veneer finish crafted from the same piece of timber for a mirrored image
Audio specs and other info:
- frequency response: 40-19,000 Hz (±4dB)
- handles up to 100 watts RMS
- sensitivity: 103 dB
- impedance: 8 ohms
- 24-1/2″W x 39-1/8″H x 25-1/2″D (each)
- weight: 205 lbs. (each)
- warranty: 10 years
- 60-day returns
- Item # 700LSAL6BA
Specs
| Cabinet & Design | |
|---|---|
| Enclosure | Ported |
| Finish | MDF/Wood veneer |
| Color | Black |
| Connector type | Binding post |
| Bi-amp inputs | Yes |
| Driver Details | |
|---|---|
| Tweeter type | Tractrix Horn |
| Tweeter size (inches) | 1 |
| Midrange size (inches) | 3 |
| Number of woofers | 1 |
| Woofer size (inches) | 12 |
| Woofer composition | Fiber-composite |
| Woofer surround | Rubber |
| Built-in powered sub | No |
| Dolby Atmos drivers | No |
| Audio Specs | |
|---|---|
| Power range (watts) | Up to 100 |
| Sensitivity | 103 dB |
| Impedance (ohms) | 8 |
| Frequency response | 40–19k Hz |
| Subwoofer amp power | — |
| Dimensions & Other Info | |
|---|---|
| Height (inches) | 39-1/8 |
| Width (inches) | 24-1/2 |
| Depth (inches) | 25-1/2 |
| Weight | 205 lbs |
| Parts warranty | 10 Years |
| Labor warranty | 10 Years |
