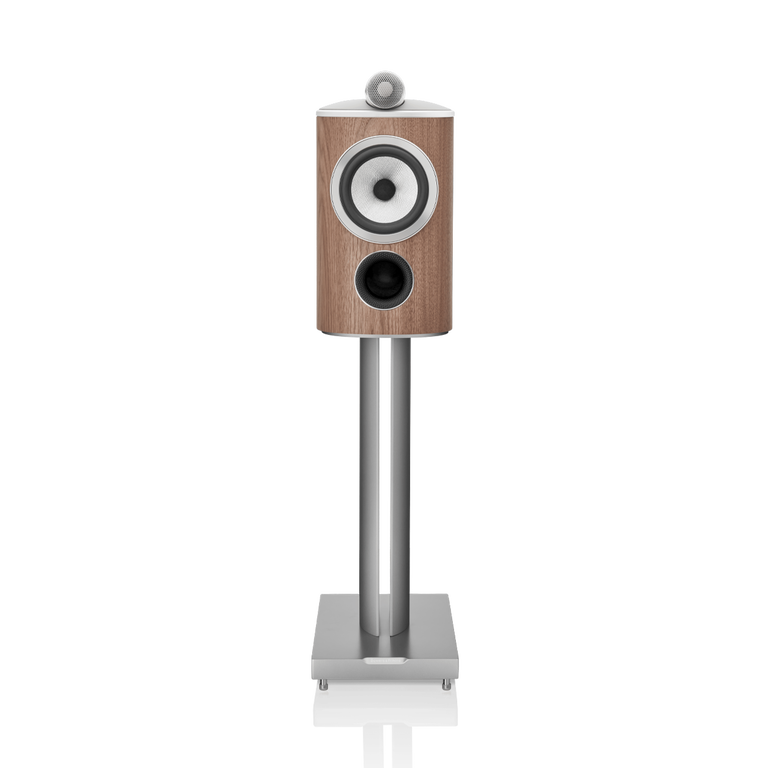

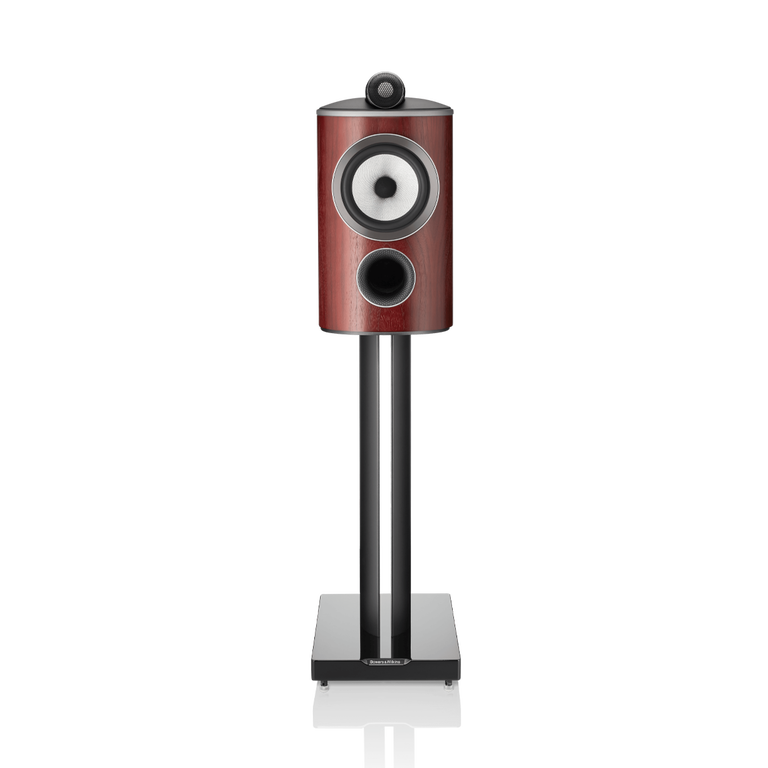

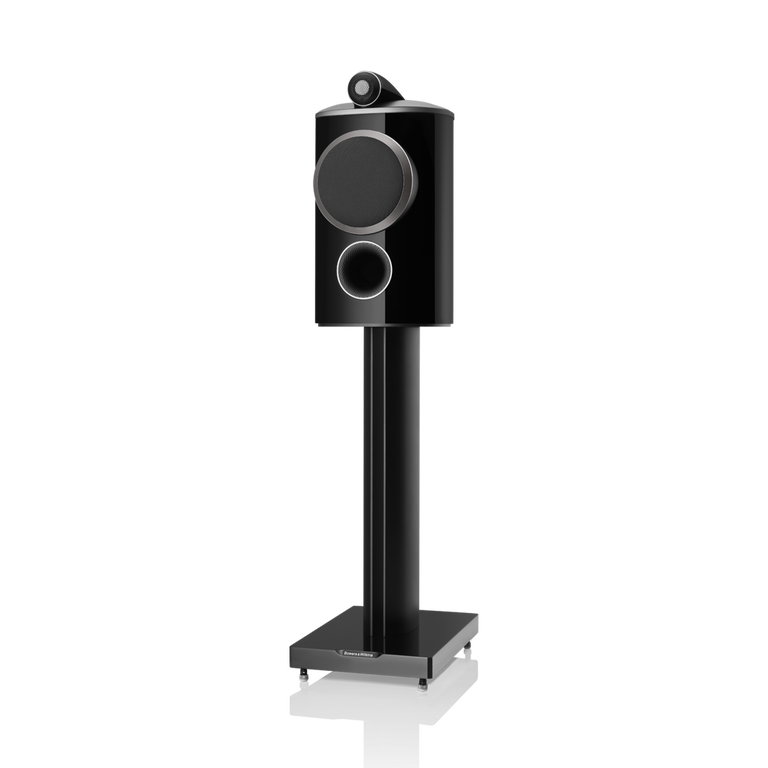

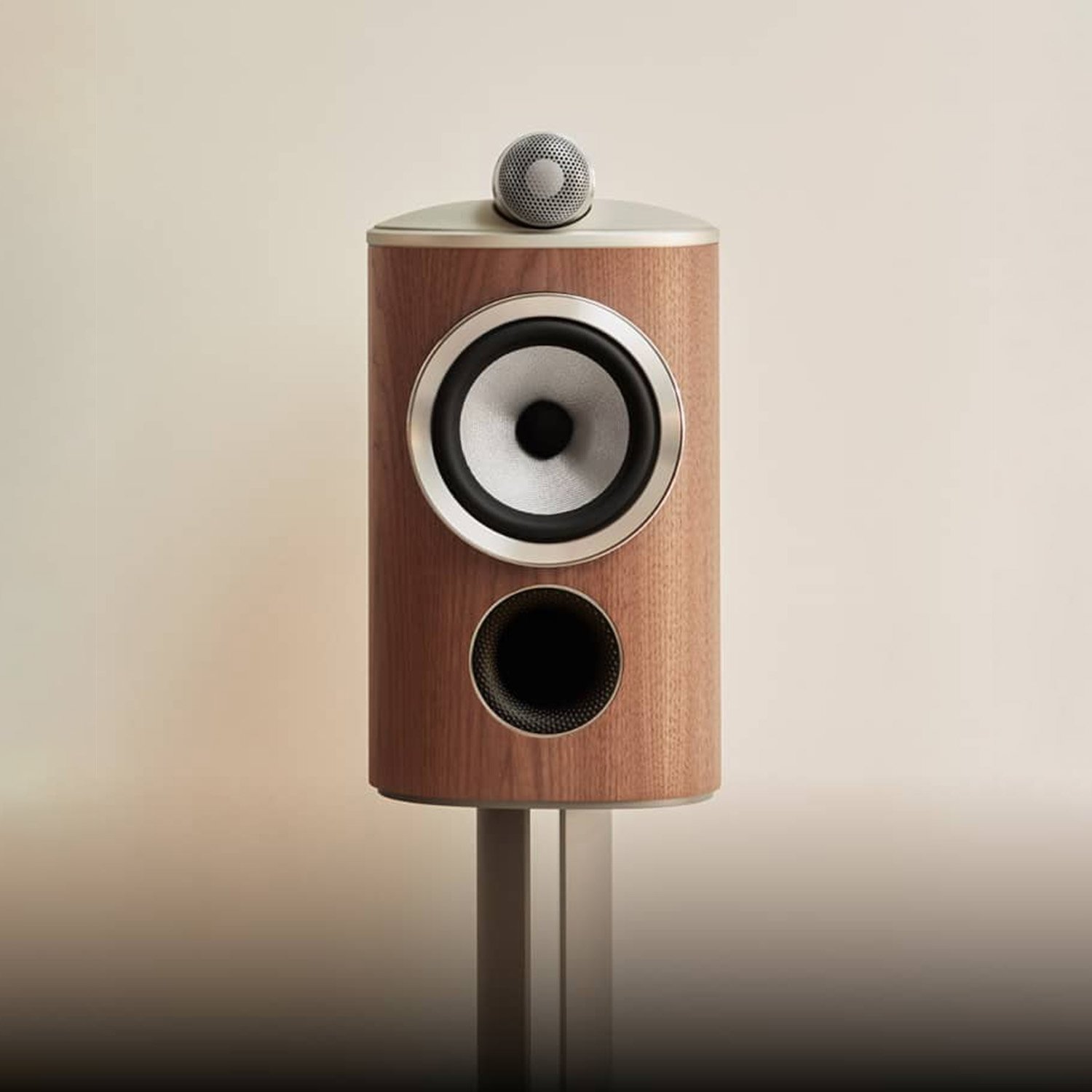

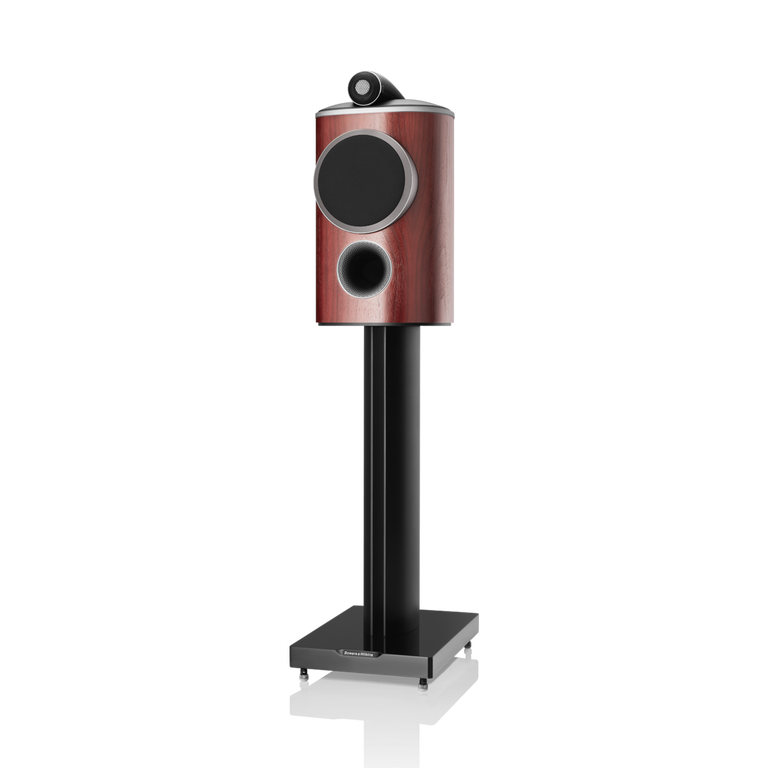

Little Diamond
805 D4 might be smaller than its tower speaker siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminum bass pods and 165mm (6.5-in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.

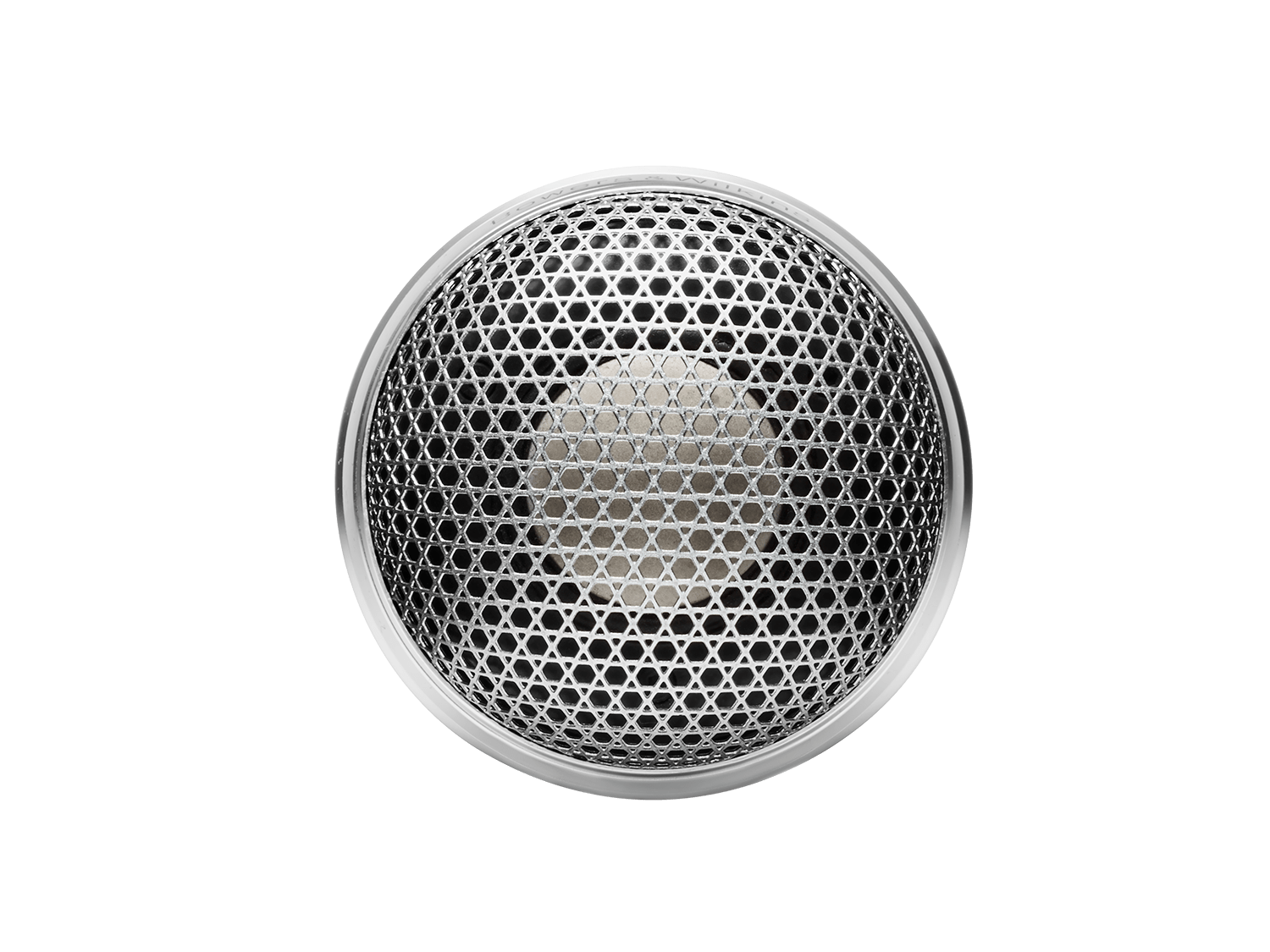

Diamond dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.

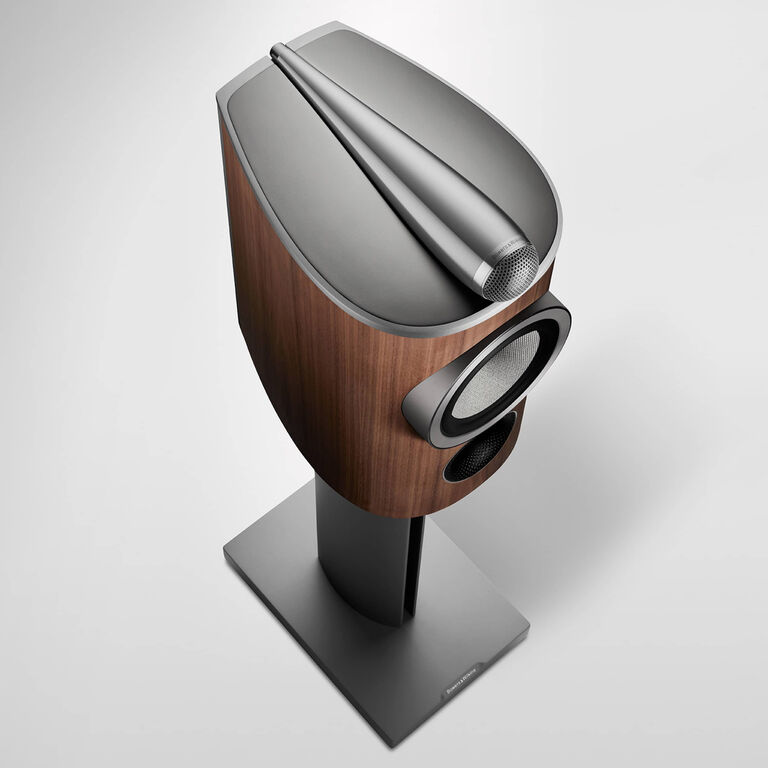

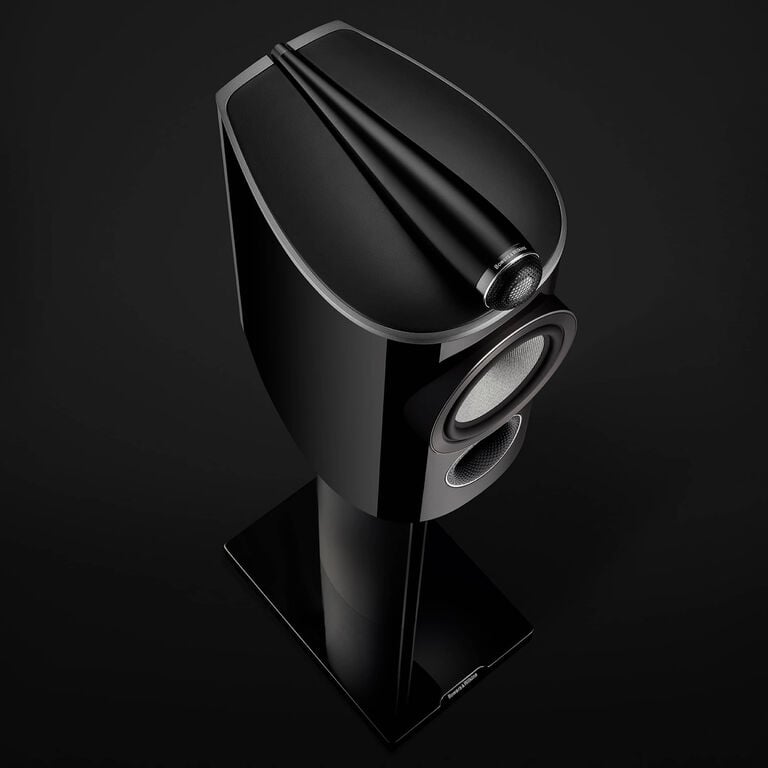

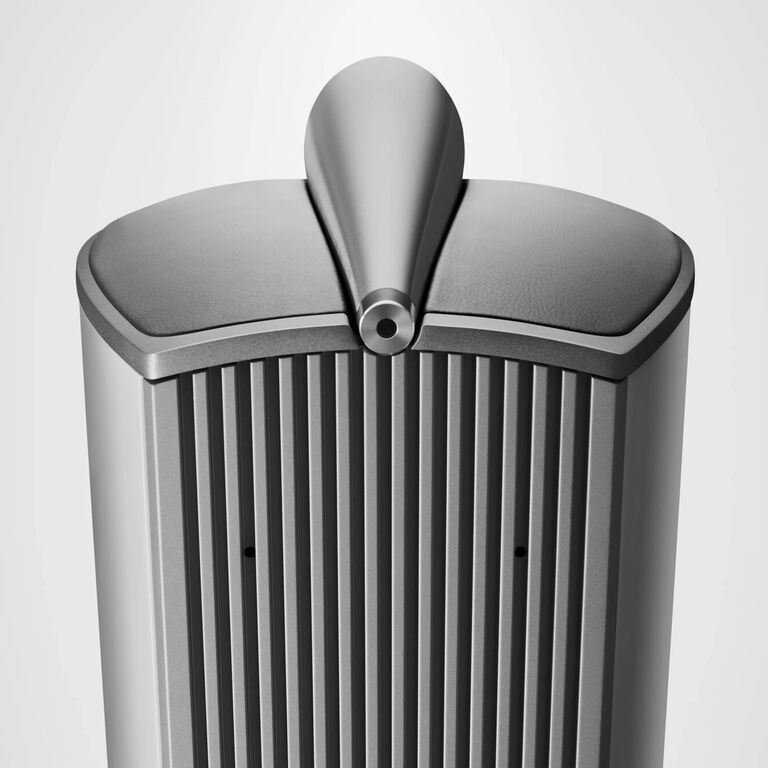

Solid Body Tweeter assembly
Our newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

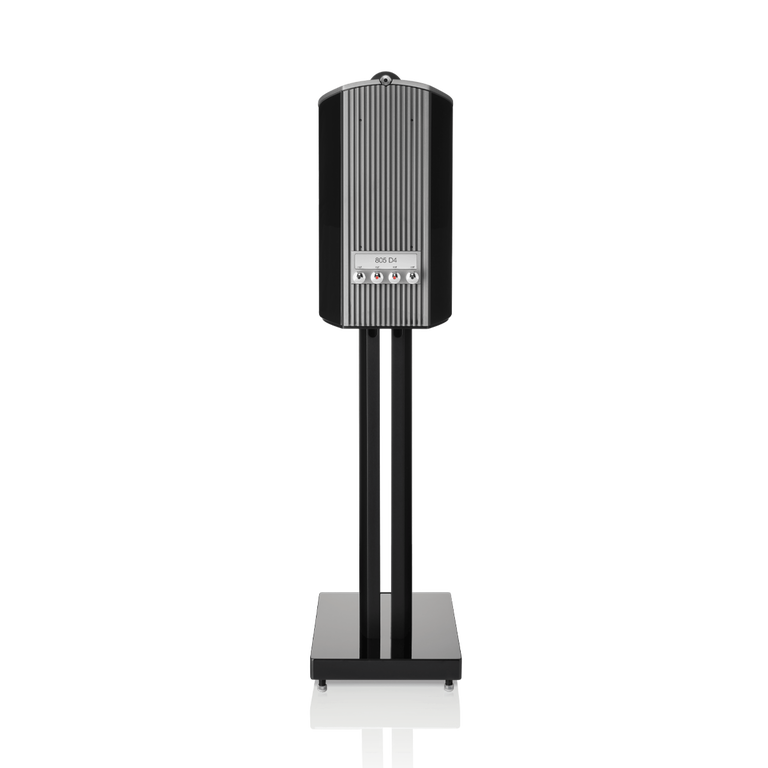

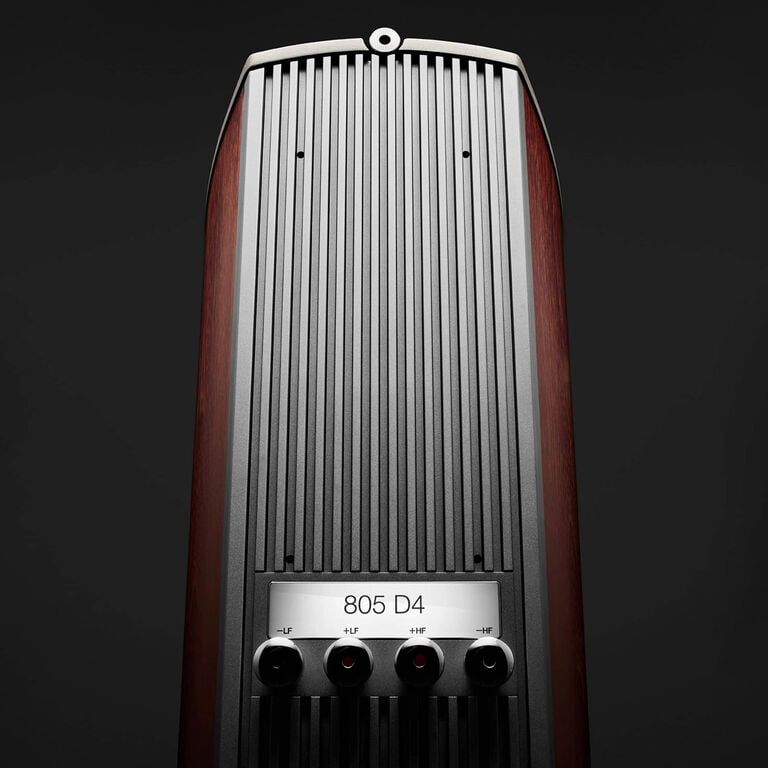

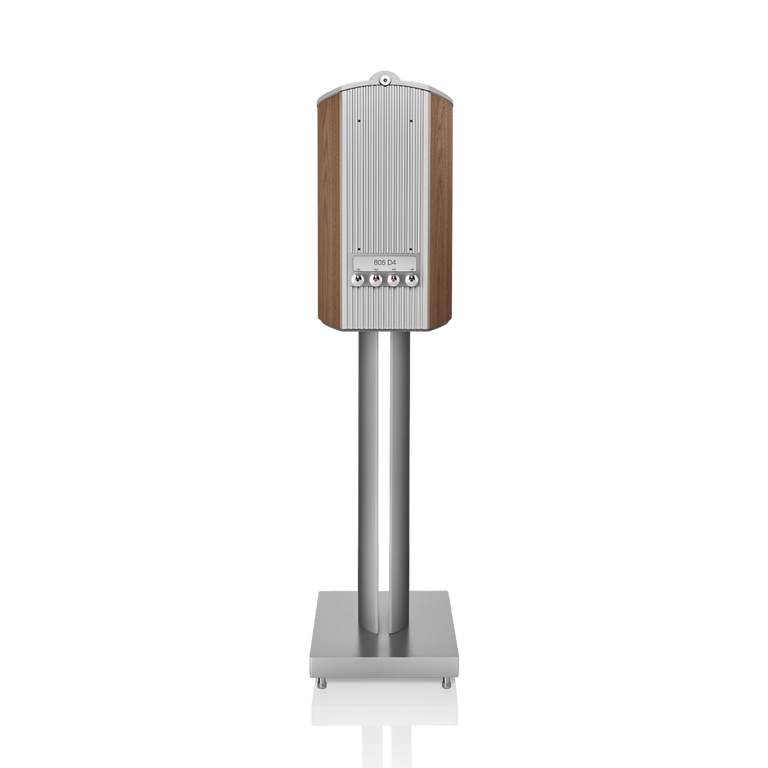

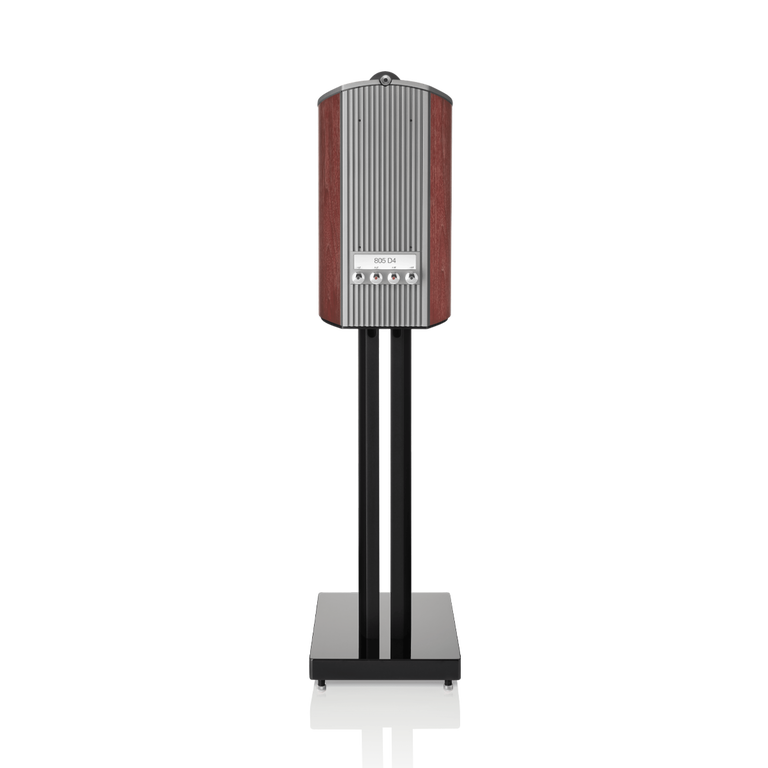

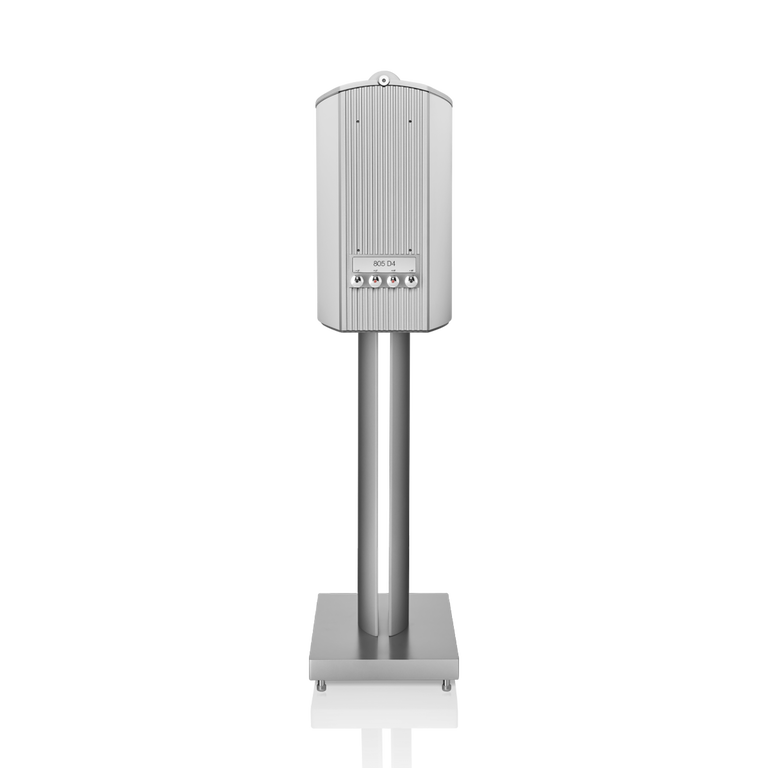

Rear-mounted crossover
The new reverse-wrap orientation of the cabinet on 805 D4 means we can place its sensitive crossover components inside their own, dedicated space within the cabinet, which has critical benefits to both performance and serviceability. We’ve taken the opportunity to upgrade the speaker terminals, too.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
Here is clean, WooCommerce-ready HTML code you can paste directly into the Product Description (Text/HTML view):
Bowers & Wilkins 805 D4 – Stand-Mount Loudspeaker
The 805 D4 is a high-performance 2-way vented-box stand-mount speaker engineered with advanced acoustic technologies for exceptional clarity and control.
It features a 25mm (1in) Diamond dome tweeter housed in a Solid Body Tweeter-on-Top assembly, paired with a 165mm (6.5in) Continuum™ cone bass/mid driver.
Matrix™ internal bracing, an Anti-Resonance plug, and Flowport technology work together to reduce coloration and deliver clean, extended bass.
Technical Features
- Diamond tweeter
- Solid Body Tweeter-on-Top
- Continuum™ cone bass/mid
- Matrix™ construction
- Anti-Resonance plug
- Flowport
Specifications
- Description: 2-way vented-box system
- Drive Units:
- 1 × ø25mm (1in) Diamond dome high-frequency
- 1 × ø165mm (6.5in) Continuum™ cone bass/midrange
- Frequency Range: 34Hz – 35kHz
- Frequency Response: 42Hz – 28kHz (±3dB from reference axis)
- Sensitivity: 88dB (2.83Vrms, 1m, on axis)
- Harmonic Distortion (90dB, 1m, on axis):
- <1% (90Hz – 20kHz)
- <0.3% (120Hz – 20kHz)
- Nominal Impedance: 8Ω (minimum 4.6Ω)
- Recommended Amplifier Power: 50W – 120W into 8Ω (unclipped programme)
- Max Recommended Cable Impedance: 0.1Ω
